Extrudere mase plastice. Extruder plastic, extruder film extruder pvc, extrudere LDPE HDPE PP PE PVC
MODEL EXTRUDERE:
Extrudere de film HDPE - ATM HDPE
Extruder HDPE-LDPE - ATM-HDPE-LDPE
Extrudere LPDE-LLDPE - ATM-PE LDPE-LLDPE
Extrudere PP -POLIPROPILEN - ATM - PP
Extrudere CO-EX 2 etaje / 3 etaje - ATM-COEX

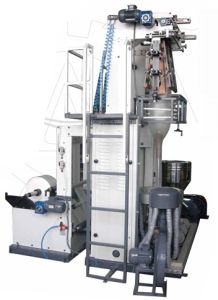

Extrudere de film HDPE - ATM HDPE
Extruder de film HDPE - ATM HDPE
Utilajul prelucreaza ca materie prima granula de polietilena de inalta densitate (HDPE) dupa ce este topita este extrudata intr-un film cilindric. Produsul finit obtinut este folia de plastic sub forma de bobina.
HPDE FILM EXTRUDER MACHINES |
||||
| Machine Type | ATM - 40 | ATM - 45 | ATM - 50 | ATM - 55 |
| Suitable Raw Metarial | HDPE | HDPE | HDPE | HDPE |
| Film Thickness | 0.006 - 0.150 mm |
|||
| Film Width | 450 mm | 500 mm | 550 mm | 650 mm |
| Capacity | max:30 kg/h | max:40 kg/h | max:45 kg/h | max:50 kg/h |
EXTRUDER UNIT |
||||
| Diametru snec | 40 mm | 45 mm | 50 mm | 55 mm |
| Screw L/d Ratid | 28:1 | 28:1 | 28:1 | 28:1 |
| Heating Capacity | 6500 w | 7000 w | 7300 w | 8500 w |
| Thermo Control | 3 zone | 3 zone | 3 zone | 3 zone |
| Barrel Cooling Fans | 3x0.18 kw | 3x0.18 kw | 3x0.18 kw | 3x0.18 kw |
| Main Motor | 11 kw inv | 15 kw inv | 18.5 kw inv | 18.5 kw inv |
DIE UNIT |
||||
| Die Diameter | Ø 60 mm | Ø 80 mm | Ø 80 mm | Ø 90 mm |
| Heating Capacity | 6200 kw | 7000 kw | 7000kw | 8000 kw |
| Thermo Control | 2 zone | 2 zone | 2 zone | 2 zone |
| Cooling Blower | 1.5 kw 2 HP inv | 1.5 kw 2 HP inv | 1.5 kw 2 HP inv | 1.5 kw 2 HP inv |
TAKE UP AND WINDING UNIT |
||||
| Take-up and winding cylinders width | 500 mm | 600 mm | 600 mm | 700 mm |
| Take-up and Winding Motors | 0.75 kw ACinv | 0.75 kw AC inv | 0.75 kw AC inv | 0.75 kw AC inv |
| Take-up and Winding Speed | 30 - 180 rpm | 30 - 180 rpm | 30 - 180 rpm | 30 - 180 rpm |
| Elevating Motor | 1.1 kw | 1.1 kw | 1.1 kw | 1.1 kw |
| Higth of Elevating | 3300 mm | 3500 mm | 3600 mm | 3800 mm |
| Qantity mouvment of elevating | 800 mm | 800 mm | 800 mm | 800 mm |
Extruder plastic, extruder film extruder pvc, extrudere LDPE HDPE PP PE PVC
