MODEL EXTRUDERE:
Extrudere de film HDPE - ATM HDPE
Extruder HDPE-LDPE - ATM-HDPE-LDPE
Extrudere LPDE-LLDPE - ATM-PE LDPE-LLDPE
Extrudere PP -POLIPROPILEN - ATM - PP
Extrudere CO-EX 2 etaje / 3 etaje - ATM-COEX

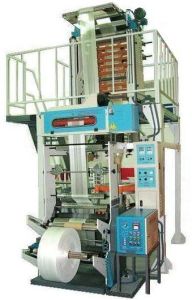

Extruder HDPE-LDPE - ATM-HDPE-LDPE
Extrudere HDPE-LDPE - ATM-HDPE-LDPE
Utilajul prelucreaza ca materie prima granula de polietilena de inalta densitate( HDPE) si polietilena de joasa densitate (LDPE) , care dupa ce este topita este extrudata intr-un film cilindric.Produsul finit obtinut este folia de plastic sub forma de bobina.
HDPE-LPDE FILM EXTRUDER MACHINES ( SMALL ) |
||||
| Machine Type | ATM - 40 | ATM - 45 | ATM - 50 | ATM - 55 |
| Suitable Raw Metarial | HDPE-LDPE | HDPE-LDPE | HDPE-LDPE | HDPE-LDPE |
| Film Thickness | HD;0.008-0.10 mm LD;0.010-0.15 mm |
|||
| Film Width | 450 mm | 550 mm | 600 mm | 650 mm |
| Capacity | HD: 30 kg/h LD: 45 kg/h |
HD: 35 kg/h LD: 50 kg/h |
HD: 45 kg/h LD: 55 kg/h |
HD: 50 kg/h LD: 60 kg/h |
EXTRUDER UNIT |
||||
| Diametru snec | 40 mm | 45 mm | 50 mm | 55 mm |
| Screw L/d Ratid | 28:1 | 28:1 | 28:1 | 28:1 |
| Thermo Control | 3 zone | 3 zone | 3 zone | 3 zone |
| Barrel Cooling Fans | 3 x 0.18 kw | 3 x 0.18 kw | 3 x 0.18 kw | 3 x 0.18 kw |
| Main Motor | 11 kw AC inv |
15 kw AC inv |
18.5 kw AC inv |
18.5 kw AC inv |
DIE UNIT |
||||
| Die Diameter | HD:Ø 60 mm LD: Ø100 mm |
HD: Ø 80 mm LD: Ø110 mm |
HD: Ø 80 mm LD: Ø 120 mm |
HD:Ø 90 mm |
| Thermo Control | 2 zone | 2 zone | 2 zone | 2 zone |
| Cooling Blower Fans | 1.5 kw AC inv |
1.5 kw AC inv |
2.2 kw AC inv |
2.2 kw AC inv |
TAKE UP AND WINDING UNIT |
||||
| Take-up and winding cylinders width | 500 mm | 600 mm | 700 mm | 700 mm |
| Take-up and Winding Motors | 0.75 kw invert |
0.75 kw invert |
0.75 kw invert |
0.75 kw invert |
| Take-up and Winding Speed | 30 - 180 rpm | 30 - 180 rpm | 30 - 180 rpm | 30 - 180 rpm |
| Elevating Motor | 1.1 kw | 1.1 kw | 1.1 kw | 1.1 kw |
| Higth of Elevating | 3500 mm | 3600 mm | 3800 mm | 3900 mm |
| Qantity mouvment of elevating | 800 mm | 800 mm | 800 mm | 800 mm |
HDPE-LPDE FILM EXTRUDER MACHINES ( BIG ) |
||||
| Machine Type | ATM - 60 | ATM - 65 | ATM - 70 | ATM - 75 |
| Suitable Raw Material | HDPE - LDPE | HDPE - LDPE | HDPE - LDPE | HDPE -LDPE |
| Film Thickness | HD : 0.007 mm - 0.150 mm LD : 0.010 mm - 0.200 mm |
|||
| Film Width | 900 mm | 1100 mm | 1300 mm | 1400 mm |
| Capasity | HD: 45 kg/ h LD: 60 kg/h |
HD: 55 kg/ h LD: 70 kg/h |
HD: 65 kg/ h LD: 80 kg/h |
HD: 70 kg/ h LD: 90 kg/h |
EXTRUDER UNIT |
||||
| Diametru snec | 60 mm | 65 mm | 70 mm | 75 mm |
| Screw L/d Ratid | 28:1 | 28:1 | 28:1 | 28:1 |
| Thermo Control | 3 zone | 3 zone | 3 zone | 3 zone |
| Barrel Cooling Fans | 3 x 0.18 kw | 3 x 0.18 kw | 3 x 0.18 kw | 3 x 0.18 kw |
| Main Motor | 18.5 kw invert |
22 kw invert |
30 kw AC invert |
37 kw AC invert |
DIE UNIT |
||||
| Die Diameter | HD: Ø 90 mm LD:Ø160 mm |
HD:Ø100mm LD:Ø160mm | HD: Ø110mm LD:Ø180mm |
HD:Ø120mm LD:Ø200mm |
| Thermo Control | 2 zone | 2 zone | 2 zone | 2 zone |
| Cooling Blower Fans | 2.2 kw invert |
2.2 kw invert |
3 kw invert |
4 kw invert |
TAKE-UP AND WINDING UNIT |
||||
| Take-up and winding cylinders width | 1000 mm | 1200 mm | 1400 mm | 1500 mm |
| Take-up and Winding Motors | 1.1 kw invert |
1.1 kw invert |
1.5 kw invert |
1.5 kw invert |
| Take-up and Winding Speed | 30 - 180 rpm | 30 - 180 rpm | 30 - 180 rpm | 30 - 180 rpm |
| Elevating Motor | 1.1 kw | 1.1 kw | 1.1 kw | 1.1 kw |
| Hight of Elevating | 4500 mm | 4800 mm | 5000 mm | 5500 mm |
